DS1624是Maxim美信半导体公司的一款1-Wire器件产品，DS1624是数字温度计和存储器，本站介绍了DS1624的封装应用图解、特点和优点、功能等，并给出了与DS1624相关的Maxim元器件型号供参考。
DS1624 - 数字温度计和存储器 - 1-Wire器件 - Maxim美信半导体高性能芯片品质 - 美信半导体
The DS1624 consists of two separate functional units: a 256-byte nonvolatile E2 memory and a direct-to-digital temperature sensor.
The nonvolatile memory is made up of 256 bytes of E2 memory. This memory can be used to store any type of information the user wishes. These memory locations are accessed through the 2-wire serial bus.

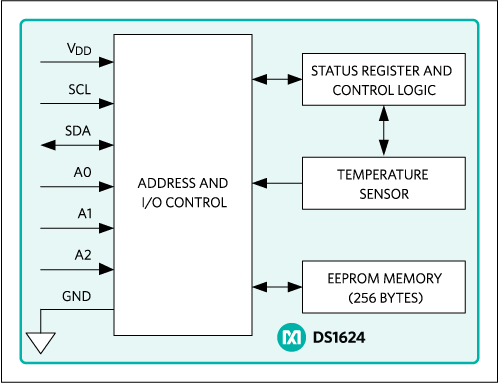

The direct-to-digital temperature sensor allows the DS1624 to measure the ambient temperature and report the temperature in a 12-bit word with 0.0625°C resolution. The temperature sensor and its related registers are accessed through the 2-wire serial interface. Figure 1 in the full data sheet shows a block diagram of the DS1624.
