DS1707是Maxim美信半导体公司的一款监控电路、电压监测、排序产品，DS1707是3.3V及5.0V MicroMonitor，本站介绍了DS1707的封装应用图解、特点和优点、功能等，并给出了与DS1707相关的Maxim元器件型号供参考。
DS1707 - 3.3V及5.0V MicroMonitor - 监控电路、电压监测、排序 - Maxim美信半导体高性能芯片品质 - 美信半导体

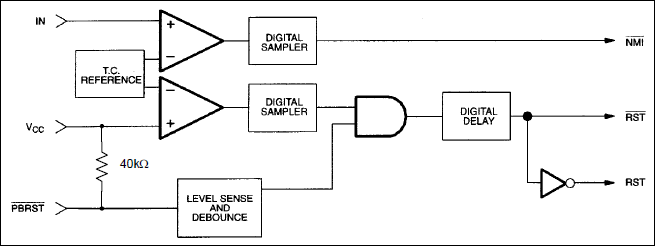

The DS1707/DS1708 3.3- or 5.0-Volt MicroMonitor monitors three vital conditions for a microprocessor: power supply, voltage sense, and external override. A precision temperature-compensated reference and comparator circuit monitor the status of VCC at the device and at an upstream point for maximum protection. When the sense input detects an out-of-tolerance condition a non-maskable interrupt is generated. As the voltage at the device degrades an internal power fail signal is generated which forces the reset to an active state. When VCC returns to an in-tolerance condition, the reset signal is kept in the active state for a minimum of 130ms to allow the power supply and processor to stabilize.
