产品概述

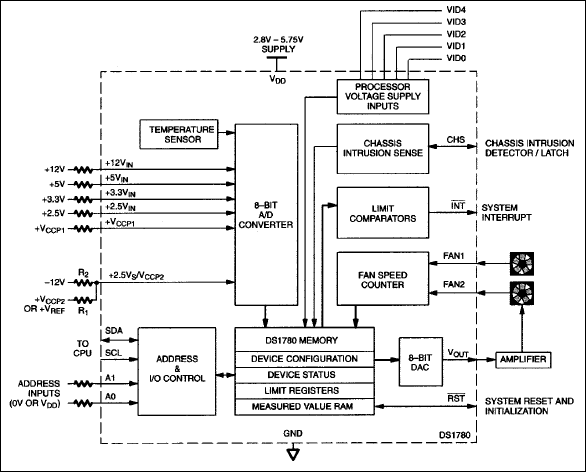

The DS1780 is a highly integrated system instrumentation monitor that is ideal for use in personal computers or any microprocessor-based system. It monitors temperature (±2°C accuracy from -25°C to +100°C), six power supply voltages, and the speed of two fans. Fan speed can also be controlled using the DS1780's internal 8-bit DAC. All measurements are internally converted to a digital format for easy processing by the CPU.

The DS1780 can be reset to its default power-up state through a remote reset function that has internal debounce and delay. The DS1780 also features an interrupt function that can be programmed to become active should any of the monitored parameters fall out of spec. For board-level testability, an internal NAND TREE function simplifies system design, and a chassis intrusion input enhances system security.

Programming and data readout are accessed through a simple 2-wire interface with 2-bit addressability. The DS1780 power supply range of 2.8V to 5.75V allows parameter monitoring for 3V or 5V systems. The DS1780 is assembled in a 24-pin 173mil TSSOP package (DS1780E).

关键特性

以下关键特性由Maxim美信半导体提供：

±2°C accuracy (from -25°C to +100°C) 9-bit digital thermometer

Six 8-bit ADC channels for monitoring PC power supplies

Two tachometer inputs

8-bit DAC for fan speed control

Maskable system interrupt for all measured parameters (temperature, voltage, fan speed, intrusion detect)

Limit settings are user-programmable

Data is transferred over 2-wire/SMBus interface

Two address inputs allow up to four DS1780 to operate on a single bus

2.8V to 5.75V operating range

24-pin 173mil TSSOP package (DS1780E)

热门应用

计算机图形系统

工业仪表

笔记本电脑

便携式终端

存储局域网(SAN)
