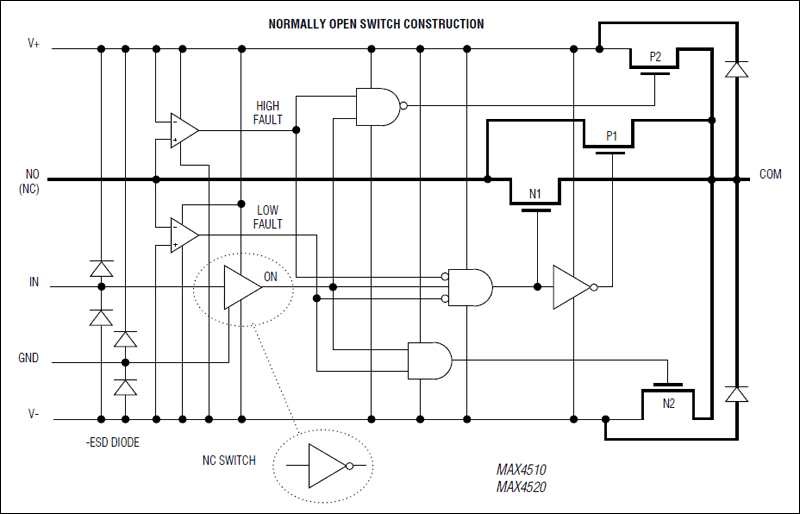

MAX4520 - 典型电路框图：
MAX4520典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX4520介绍

MAX4520 - 满摆幅、故障保护、SPST模拟开关

MAX4520是Maxim美信半导体公司的一款保护器产品，MAX4520是满摆幅、故障保护、SPST模拟开关，本站介绍了MAX4520的封装应用图解、特点和优点、功能等，并给出了与MAX4520相关的Maxim元器件型号供参考。

MAX4520 - 满摆幅、故障保护、SPST模拟开关 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4510/MAX4520 single-pole/single-throw (SPST), fault-protected analog switches feature a fault-protected input and rail-to-rail signal-handling capability. The normally open (NO) and normally closed (NC) terminals are protected from overvoltage faults up to 36V during power-on and 44V with power off. During a fault condition, the switch input terminal (NO or NC) becomes an open circuit; only nanoamperes of leakage current flow from the fault source, and the switch output (COM) furnishes up to 13mA of the appropriate polarity supply voltage to the load. This ensures unambiguous rail-to-rail outputs when a fault begins and ends.

On-resistance is 160Ω max. The off-leakage current is only 0.5nA at +25°C and 10nA at +85°C. The MAX4510 is a normally closed switch, while the MAX4520 is a normally open switch. These CMOS switches operate with dual power supplies ranging from ±4.5V to ±20V or a single supply between +9V and +36V.

The digital input has +0.8V and +2.4V logic thresholds, ensuring both TTL- and CMOS-logic compatibility when using ±15V or a single +12V supply. The MAX4510/MAX4520 are available in 6-pin SOT23 and 8-pin µMAX® packages.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • ±40V Fault Protection with Power Off
  • ±36V Fault Protection with ±15V Supplies
  • Switch is Off with Power Removed
  • Rail-to-Rail Signal Handling
  • 160Ω max Signal Paths with ±15V Supplies
  • On-Switch Turns Off with Overvoltage
  • 0.5nA Off-Leakage Current
  • Output Clamped to Appropriate Supply Voltage During Fault Condition; No Transition Glitch
  • No Power-Supply Sequencing Required
  • ±4.5V to ±20V Dual Supplies +9V to +36V Single Supply
  • Low Power Consumption: < 2mW
  • TTL- and CMOS-Compatible Logic Inputs with Single +9V to +15V or ±15V Supplies
    • 热门应用
  • 自动测试设备(ATE)
  • 航空电子
  • 数据采集
  • 工业与过程控制系统
  • 冗余/备份系统
