MAX5385 - Maxim美信公司低成本、低功耗、8位DAC，带有3线串行接口，SOT23封装

Maxim（美信半导体）| Maxim产品型号搜索

当前位置：美信半导体 > > 美信芯片 >> MAX5385

MAX5385技术文档下载：

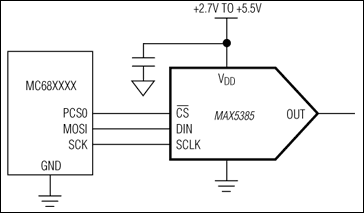

MAX5385 - 典型电路框图：

MAX5385 - 低成本、低功耗、8位DAC，带有3线串行接口，SOT23封装

MAX5385是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX5385是低成本、低功耗、8位DAC，带有3线串行接口，SOT23封装，本站介绍了MAX5385的封装应用图解、特点和优点、功能等，并给出了与MAX5385相关的Maxim元器件型号供参考。

MAX5385 - 低成本、低功耗、8位DAC，带有3线串行接口，SOT23封装 - 数据转换器和采样-保持电路 - 首款3线、SOT DAC，内置基准 - 美信半导体

产品概述

The MAX5383/MAX5384/MAX5385 low-cost, 8-bit digital-to-analog converters (DACs) in miniature 6-pin SOT23 packages have a simple 3-wire, SPI™/QSPI™/MICROWIRE™-compatible serial interface that operates up to 10MHz. The MAX5383 has an internal +2V reference and operates from a +2.7V to +3.6V supply. The MAX5384 has an internal +4V reference and operates from a +4.5V to +5.5V supply. The MAX5385 operates over the full +2.7V to +5.5V supply range and has an internal reference equal to 0.9 x VDD.

The MAX5383/MAX5384/MAX5385 require an extremely low supply current of only 150µA (typ) and provide a buffered voltage output. These devices power up at zero code and remain there until a new code is written to the DAC registers. This provides additional safety for applications that drive valves or other transducers that need to be off on power-up. The MAX5383/MAX5384/MAX5385 include a 1µA, low-power shutdown mode that features software-selectable output loads of 1kΩ, 100kΩ, or 1MΩ to ground.

关键特性

以下关键特性由Maxim美信半导体提供：

8-Bit Resolution in a Miniature 6-Pin SOT23 Package

Wide +2.7V to +5.5V Supply Range (MAX5385)

< 1µA Shutdown Mode

Software-Selectable Output Resistance During Shutdown

Buffered Output Drives Resistive Loads

Low-Glitch Power-On Reset to Zero DAC Output

3-Wire SPI/QSPI/MICROWIRE-Compatible Interface

< ±5% Full-Scale Error (MAX5385)

< ±1 LSB max INL/DNL

Low 230µA (max) Supply Current
