MAX691A - 微处理器监控电路

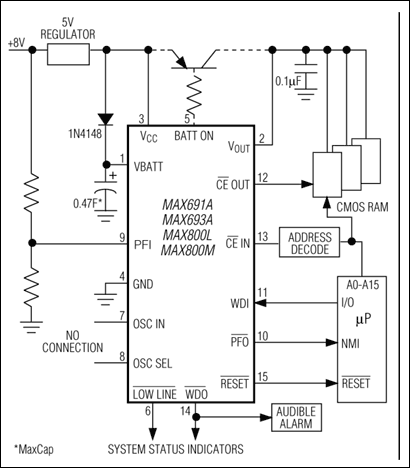

MAX691A是Maxim美信半导体公司的一款监控电路、电压监测、排序产品，MAX691A是微处理器监控电路，本站介绍了MAX691A的封装应用图解、特点和优点、功能等，并给出了与MAX691A相关的Maxim元器件型号供参考。
MAX691A - 微处理器监控电路 - 监控电路、电压监测、排序 - 工业标准、功能完备的µP监控电路 - 美信半导体
产品概述
The MAX691A/MAX693A/MAX800L/MAX800M microprocessor (µP) supervisory circuits are pin-compatible upgrades to the MAX691, MAX693, and MAX695. They improve performance with 30µA supply current, 200ms typ reset active delay on power-up, and 6ns chip-enable propagation delay. Features include write protection of CMOS RAM or EEPROM, separate watchdog outputs, backup-battery switchover, and a RESET-bar output that is valid with VCC down to 1V. The MAX691A/MAX800L have a 4.65V typical reset-threshold voltage, and the MAX693A/MAX800M's reset threshold is 4.4V typical. The MAX800L/MAX800M guarantee power-fail accuracies to ±2%.
关键特性
以下关键特性由Maxim美信半导体提供：200ms Power-OK/Reset Timeout Period1µA Standby Current, 30µA Operating CurrentOn-Board Gating of Chip-Enable Signals, 10ns max DelayMaxCap® or SuperCap CompatibleGuaranteed Active-Low RESET Assertion to VCC = +1VVoltage Monitor for Power-Fail or Low-Battery WarningPower-Fail Accuracy Guaranteed to ±2% (MAX800L/M)Available in 16-Pin Narrow SO, Plastic DIP, and TSSOP Packages热门应用
计算机：台式机、工作站和服务器控制器精确的µP监控智能仪表
